| 型号 | K4100D1 | K4102D1 | K4100ZD1 | ZH4105ZD1 | ZH4105ZLD1 |
| Model | |||||
| 进气方式 | 自然吸气(Natural aspiration) | 涡轮增压 | 增压中冷 | ||
| Aspiration | |||||
| 气缸数-缸径*活塞行程 | 4-100*115 | 4-102*115 | 4-100*115 | 4-105*115 | 4-105*115 |
| Cylinder NO.Bore*Stroke(mm) | |||||
| 标定功率/转速 | 30/1500 | 33/1500 | 40/1500 | 50/1500 | 55/1500 |
| Rated power/speed (kw/r/min) | |||||
| 标定工况燃油消耗率 | ≤258 | ≤251 | |||
| Rated condition fuel consumption rate(g/kw.h) | |||||
| 标定工况润滑油消耗率 | ≤2.04 | ||||
| Rated condition Lubricating oil consumption rate(g/kw.h) | |||||
| 润滑油容量 | 13 | ||||
| Volume of coolant(L) | |||||

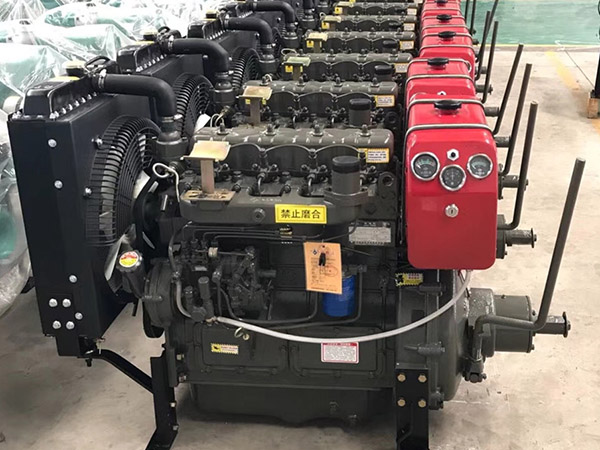

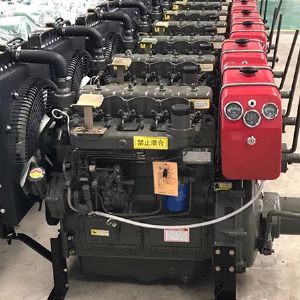

4100柴油机
4100柴油机 2019-5-23 本文被阅读 2558 次
